Render

There is a simplified type of deployment where you can try to deploy Ship for free using Render. This type allows you to set up infrastructure faster and doesn’t require additional DevOps knowledge from the development team. You can switch to a more complex Kubernetes solution when your application will be at scale.

It’s a step-by-step Ship deployment guide. We will use the Render, Mongo Atlas and Redis Cloud for databases deployment and Cloudflare (optional) for DNS and SSL configuration.

You need to create GitHub, Render, CloudFlare, MongoDB Atlas and Redis Cloud accounts.

Also, you need git and Node.js if you already haven’t.

Setup project

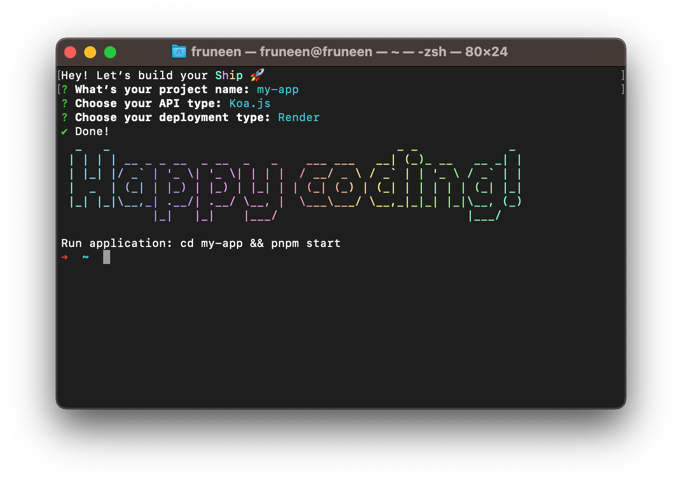

First, initialize your project. Type npx create-ship-app init in the terminal then choose desired build type and Render as a cloud service provider.

You will have next project structure.

/my-app
  /apps
    /web
    /api
  /.github
  ...

Create GitHub private repository and upload source code.

cd my-app
git remote add origin https://github.com/Oigen43/my-app.git
git branch -M main
git push -u origin main

MongoDB Atlas

Navigate to MongoDB Atlas, sign in to your account and create a new database.

Database creation

1. Select the appropriate type. Dedicated for a production environment, shared for staging/demo.
2. Select provider and region. We recommend selecting the same or closest region to the DO application.
3. Select cluster tier. Free M0 Sandbox should be enough for staging/demo environments. For production environment we recommended selecting the option that supports cloud backups, M2 or higher.
4. Enter cluster name

Security and connection

After cluster creation, you’ll need to set up security. Select the authentication type (username and password) and create a user.

Please be aware that the initial character of the generated password should be a letter. If it isn’t, you’ll need to create a new password. Failing to do this may lead to DigitalOcean parsing the MONGO_URI variable incorrectly.

Add IP addresses list, which should have access to your cluster. Add 0.0.0.0/0 IP address to allow anyone with credentials to connect.

After database creation, go to the dashboard page and get the URI connection string by pressing the connect button.

Select Connect your application option. Choose driver and mongo version, and copy connection string. Don’t forget to replace <password> with your credentials.

Save this value. It will be needed later when creating the app in Digital Ocean.

Before moving to production, it’s crucial to set up MongoDB backup methods.

This ensures that you can reliably restore your data in the event of unforeseen circumstances.

Redis Cloud

Navigate to Redis Cloud and create an account. Select cloud provider and region, then press Let's start free to finish database creation.

Open database settings and get the database public endpoint and password.

Form Redis connection string using public endpoint and password redis://:<password@<public-endpoint>. Save this value. It will be needed later when creating the app in Digital Ocean.

Render

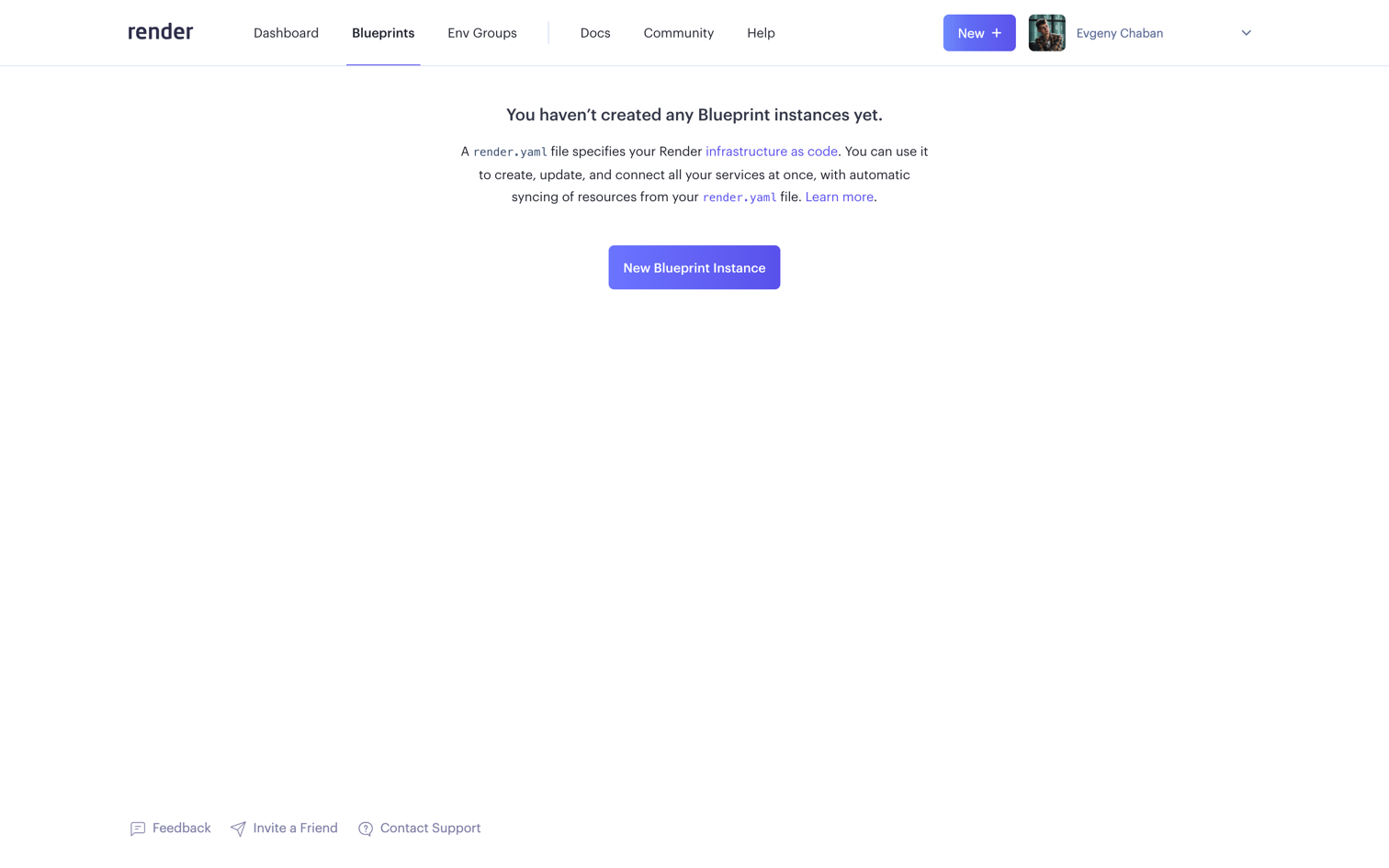

Navigate to the Render Dashboard Panel and select the Blueprints tab.

The Full-Stack build type requires 2 applications. First for Web and second for API, Migrator (TBD), and Scheduler (TBD) services.

Ship provides an easy way to deploy your applications using Infrastructure as Code (IaC).

You can learn more about Blueprint Specification here. Review your render.yaml file in the application root directory and make some corrections if necessary.

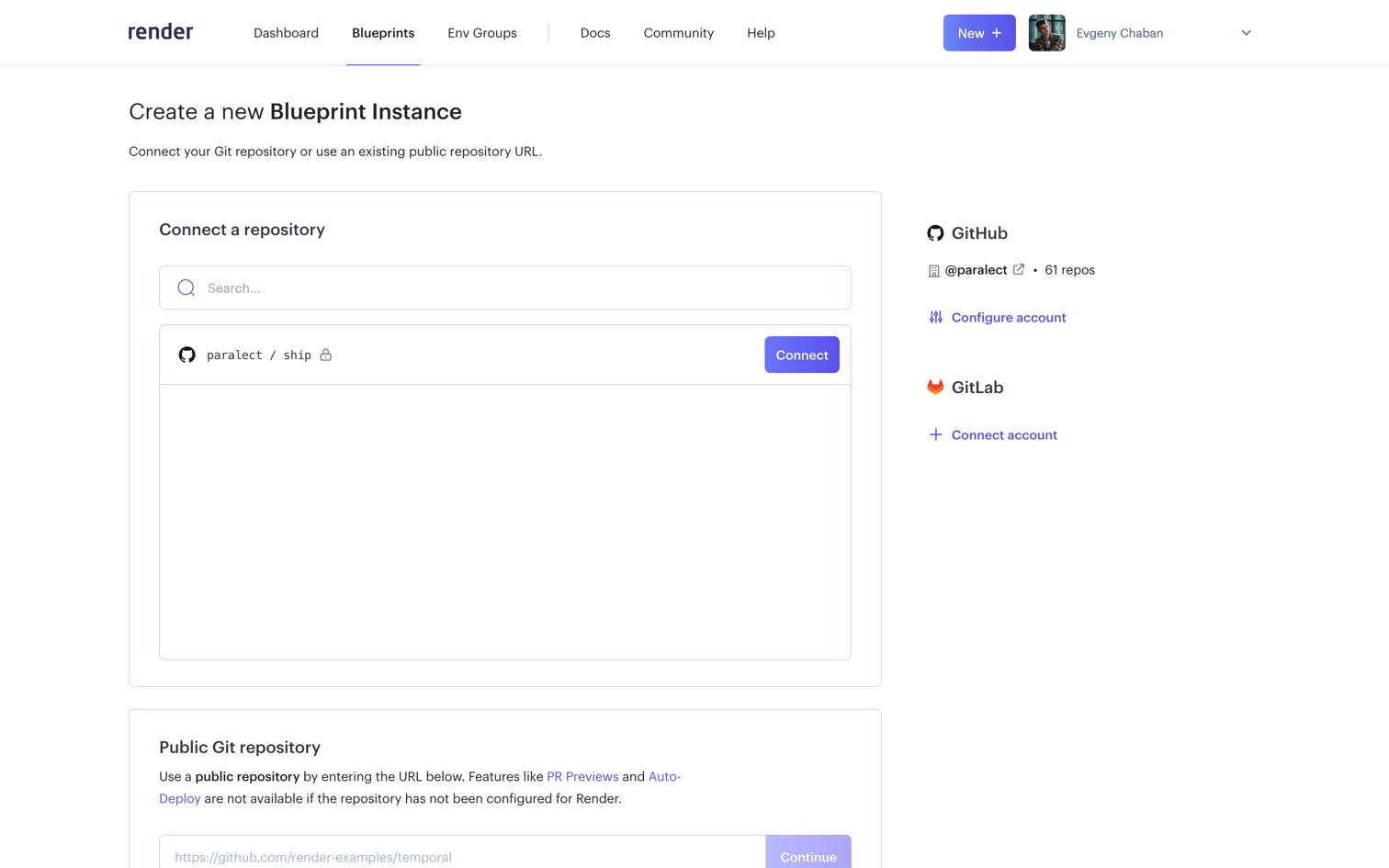

Click on the New Blueprint Instance button and connect the appropriate repository with Ship.

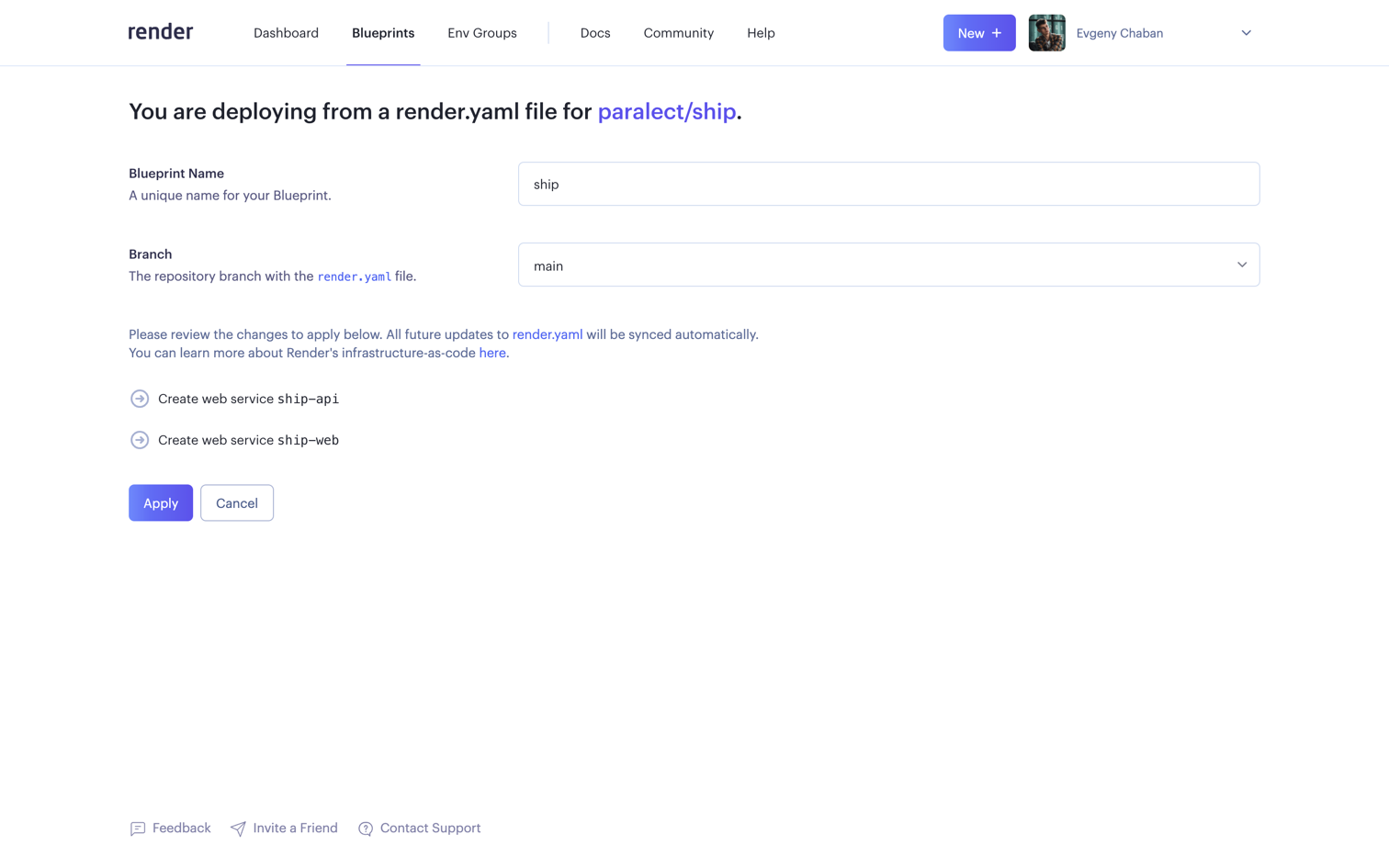

Specify a name for your Blueprint instance, select a branch, and review the changes to apply them. Apply changes if you are satisfied with everything.

Environment variables

The APP_ENV environment variable is typically set based on the environment in which the application is running. Its value corresponds to the specific environment, such as “development”, “staging” or “production”. This variable helps the application identify its current environment and load the corresponding configuration.

For the web application, by setting the environment variable APP_ENV, the application can determine the environment in which it is running and download the appropriate configuration file:

APP_ENV	File
development	.env.development
staging	.env.staging
production	.env.production

These files should contain specific configuration variables required for each environment.

In contrast, the API utilizes a single .env file that houses its environment-specific configuration. This file typically contains variables like API keys, secrets, or other sensitive information. To ensure security, it’s crucial to add the .env file to the .gitignore file, preventing it from being tracked and committed to the repository.

So just specify the environment variables that will contain the values of your secrets. For example, if you have a secret named API_KEY, create an environment variable named API_KEY and set the value of the corresponding secret for it

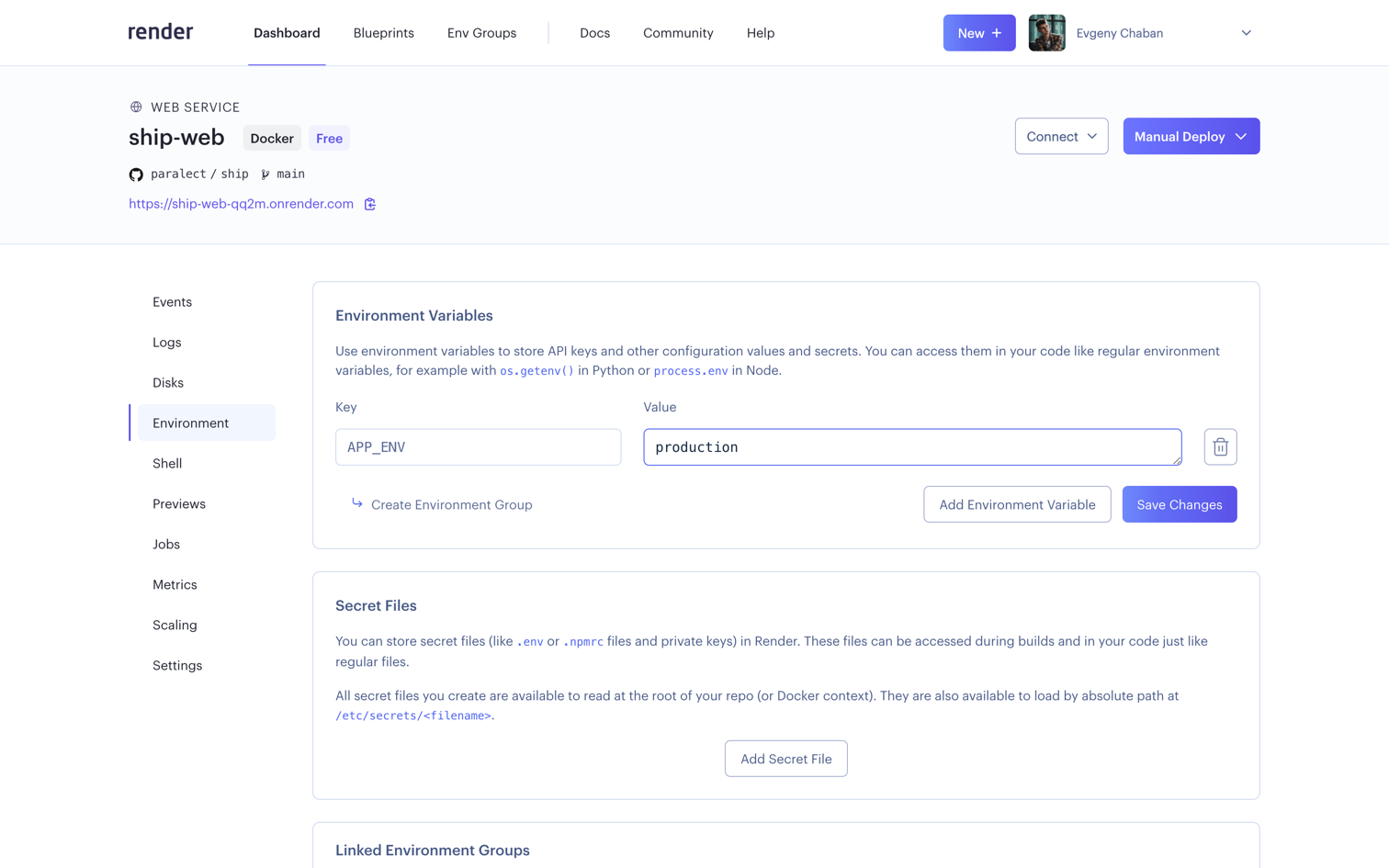

Now navigate to Dashboard, select your instance of Web Service and select the Environment tab in the sidebar.

Here you need to pass only one variable - APP_ENV. Make sure that your web application has up-to-date environment data in the repository.

In the same way, specify the necessary environments in the API Service instance.

Cloudflare

Render provides an initial URL of the form *.onrender.com to all deployed services. onrender.com is a public suffix domain as it’s a shared domain across all Render services - and is done so in order to protect users from being able to read each other’s cookies.

Ship uses cookies to store tokens on the front-end side. Therefore, you need a different domain to successfully deploy the application.

If you don’t have a personal domain, you can use free solutions for educational purposes, such as free-domain repository.

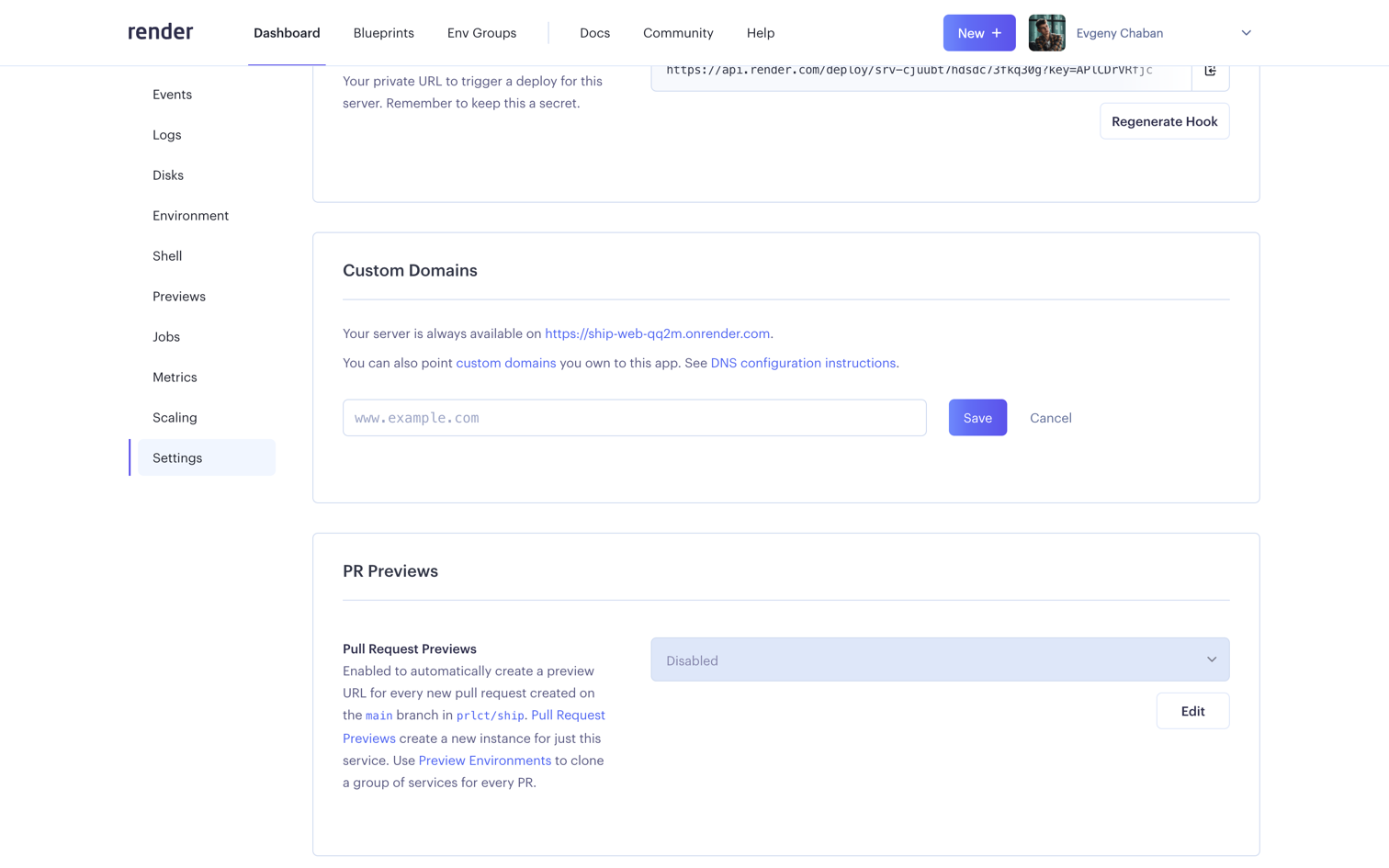

Navigate to your Render application and open the Settings tab, scroll down to the Custom Domains section and click the Add Custom Domain button.

Type your desired domain and click the Save button.

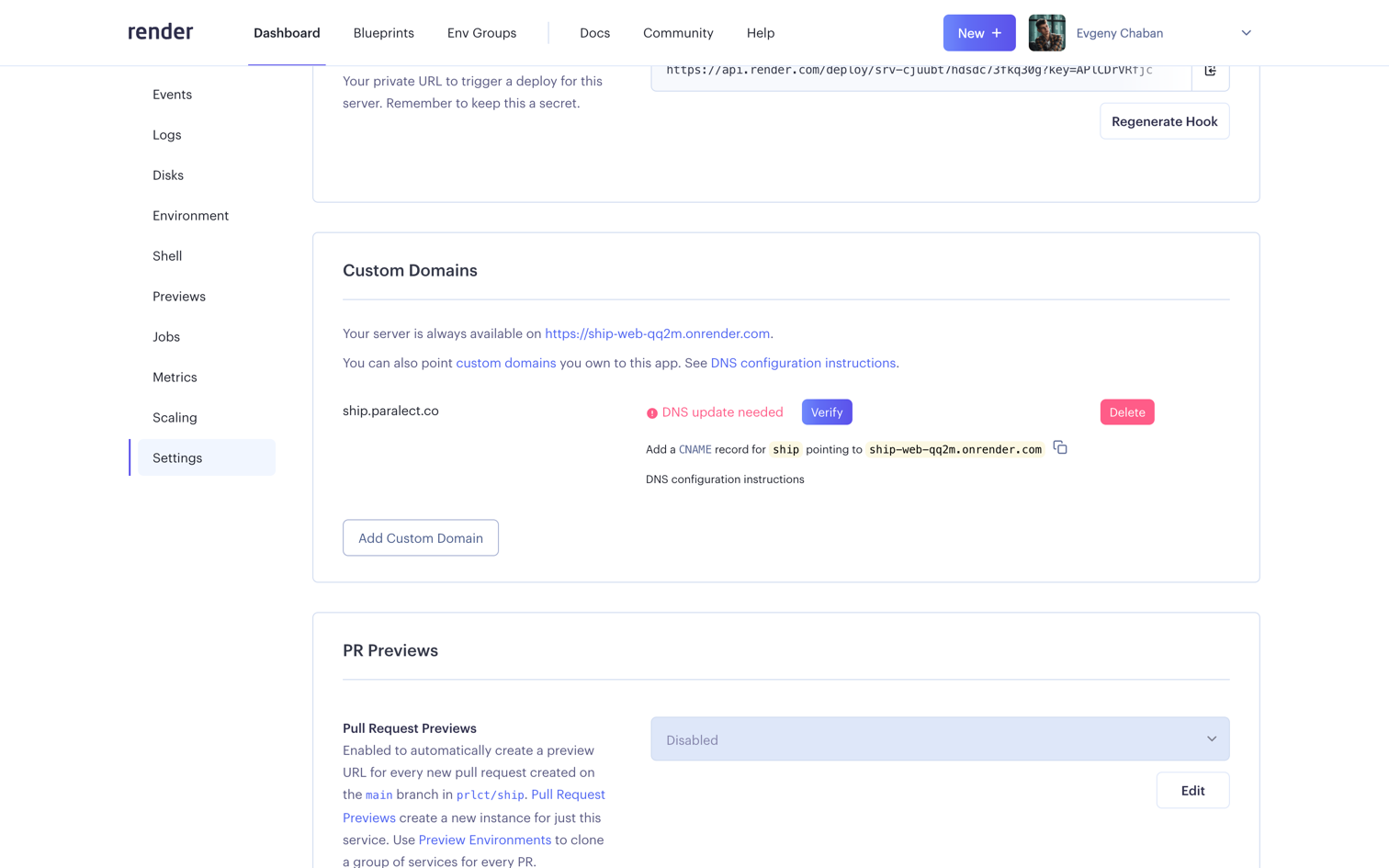

After adding a new custom domain, you need to add a CNAME record in your DNS provider. Copy this alias for your app and move on.

Navigate to CloudFlare and sign in to account.

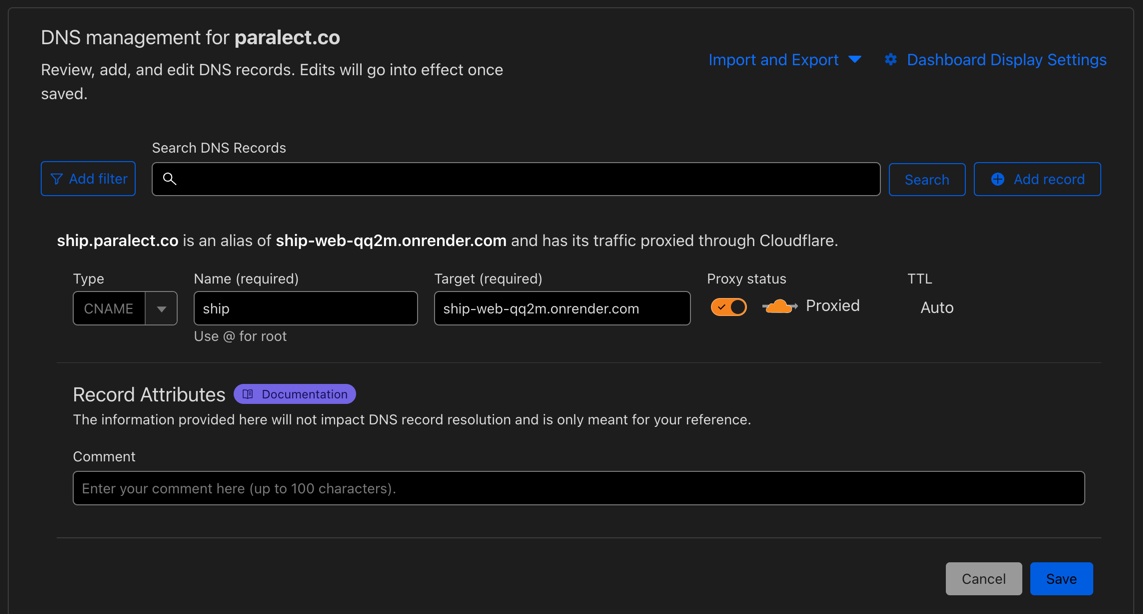

1. Go to DNS tab and create a new record.
2. Click Add record. Select type CNAME, enter domain name (must be the same you entered in Render settings) and paste alias into target field. Make sure Proxy status toggle enabled.
3. Save changes

Now go back to Custom Domains Settings and click the Verify button. It usually takes about 5 minutes for Render to confirm your domain and issue a certificate and start using your new domain. Once the domain is confirmed, application can be accessed by new address.

Now make sure you have up-to-date environments in your API and Web applications.
