It’s a step-by-step Ship deployment guide. We will use Digital Ocean Managed Kubernetes, Container Registry, Mongo Atlas, GitHub Actions for automated deployment, and CloudFlare for DNS and SSL configuration.

You need to create GitHub, CloudFlare, Digital Ocean and MongoDB Atlas accounts and install the next tools on your machine before starting:

• kubectl - CLI tool for accessing Kubernetes cluster;
• kubectx - CLI tool for easier switching between Kubernetes contexts;
• helm - CLI tool for managing Kubernetes deployments;
• k8sec - CLI tool for managing Kubernetes Secrets easily;

How to install k8sec on Linux?

Download k8sec tar.gz, then do:

chmod +x k8sec

sudo cp k8sec /usr/local/bin/

k8sec --help

Try the next commands to ensure that everything is installed correctly:

kubectl

kubectx

helm

k8sec

Also, you need git and Node.js if you already haven’t.

Setup project

First, initialize your project. Type npx create-ship-app@latest in the terminal then choose Digital Ocean Managed Kubernetes deployment type.

You will have next project structure.

/my-ship-app
  /.github
  /apps
    /api
    /web
  /deploy
  ...

Container registry

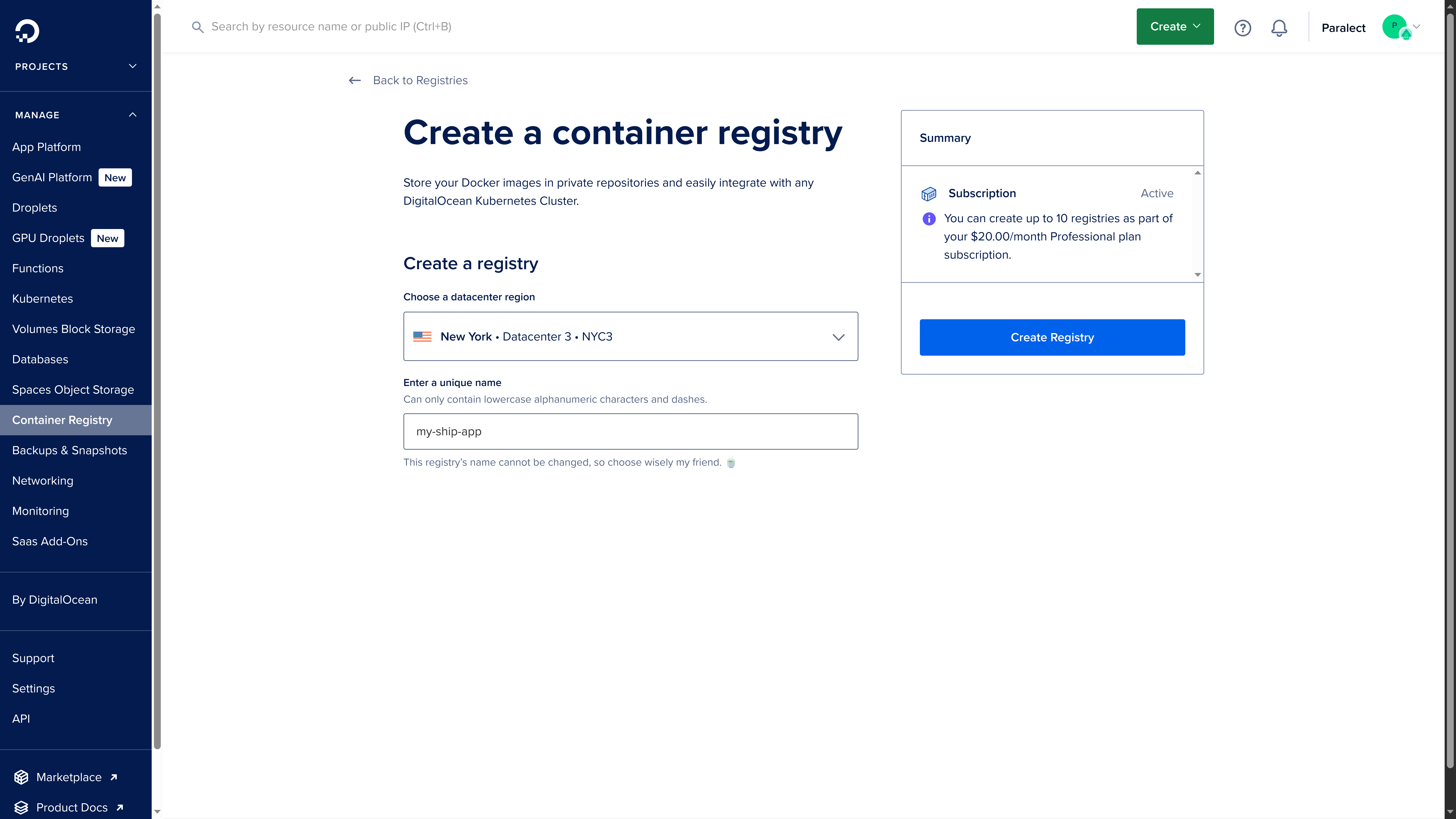

You need to create Container Registry for storing Docker images. The deployment script will upload images to Container Registry during the build step, and Kubernetes will automatically pull these images from Container Registry to run a new version of service during the deployment step.

Name container registry as the name of organization, which usually is equals to the name of the project: my-ship-app.

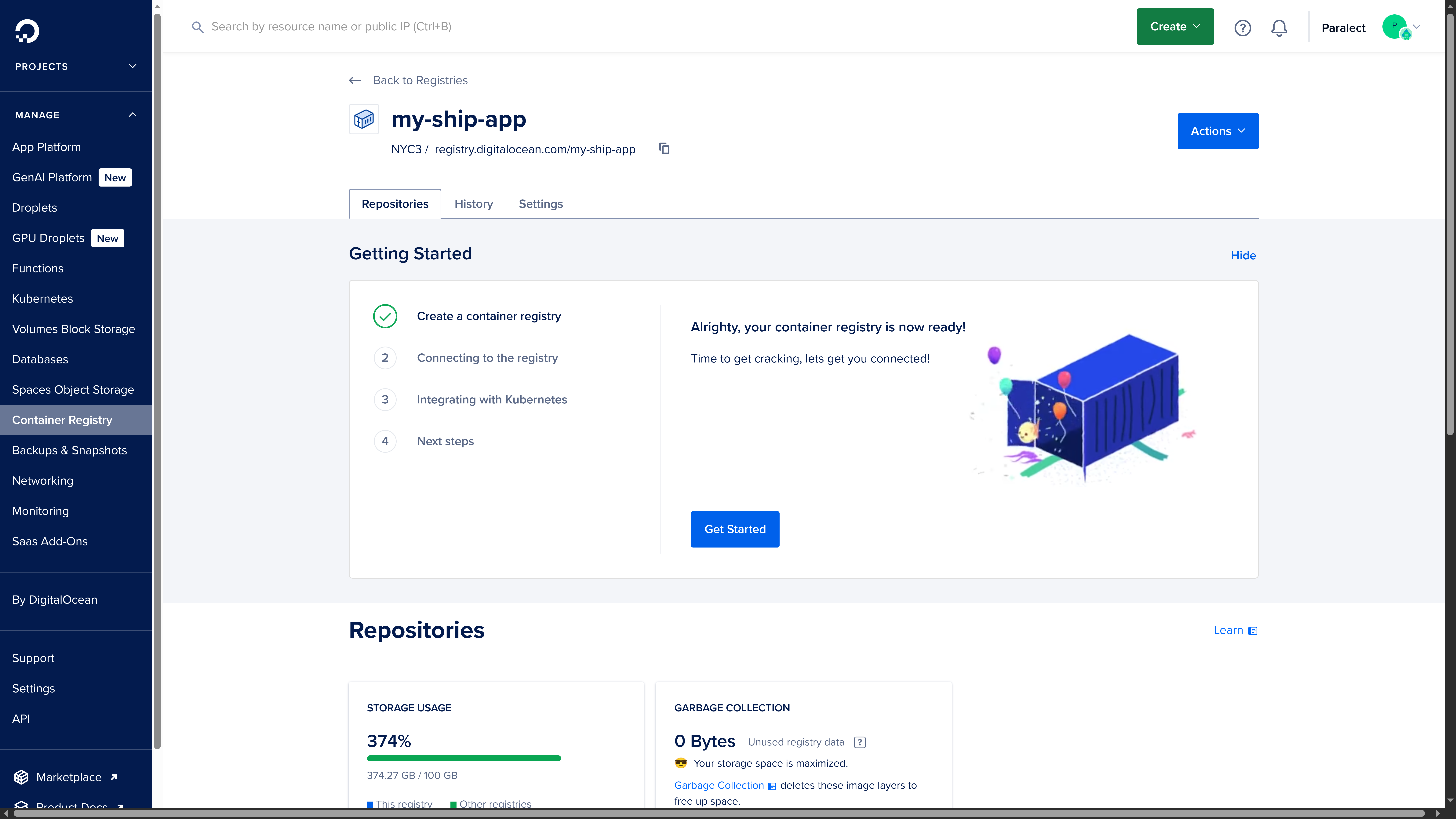

After some time, you will get registry endpoint.

registry.digitalocean.com/my-ship-app is registry endpoint, where my-ship-app is registry name.

Docker images for each service are stored in separate repository. In Digital Ocean repositories are created automatically when something is uploaded by specific paths. During deployment process script will automatically create paths to repositories in next format:

• API - registry.digitalocean.com/my-ship-app/api;
• Scheduler - registry.digitalocean.com/my-ship-app/scheduler;
• Migrator - registry.digitalocean.com/my-ship-app/migrator;
• Web - registry.digitalocean.com/my-ship-app/web;

Images for all environments will be uploaded to the same repository for each service.

Kubernetes cluster

Now let’s create Managed Kubernetes cluster.

1. Select a region

   Navigate to the cluster creation page here


   We recommend you to create a cluster in the region where your end-users are located, it will reduce response time to incoming requests to all services.

   Also, if your cluster will be located in one region with a Container Registry deployment process will be faster. You can find more information about regions here.

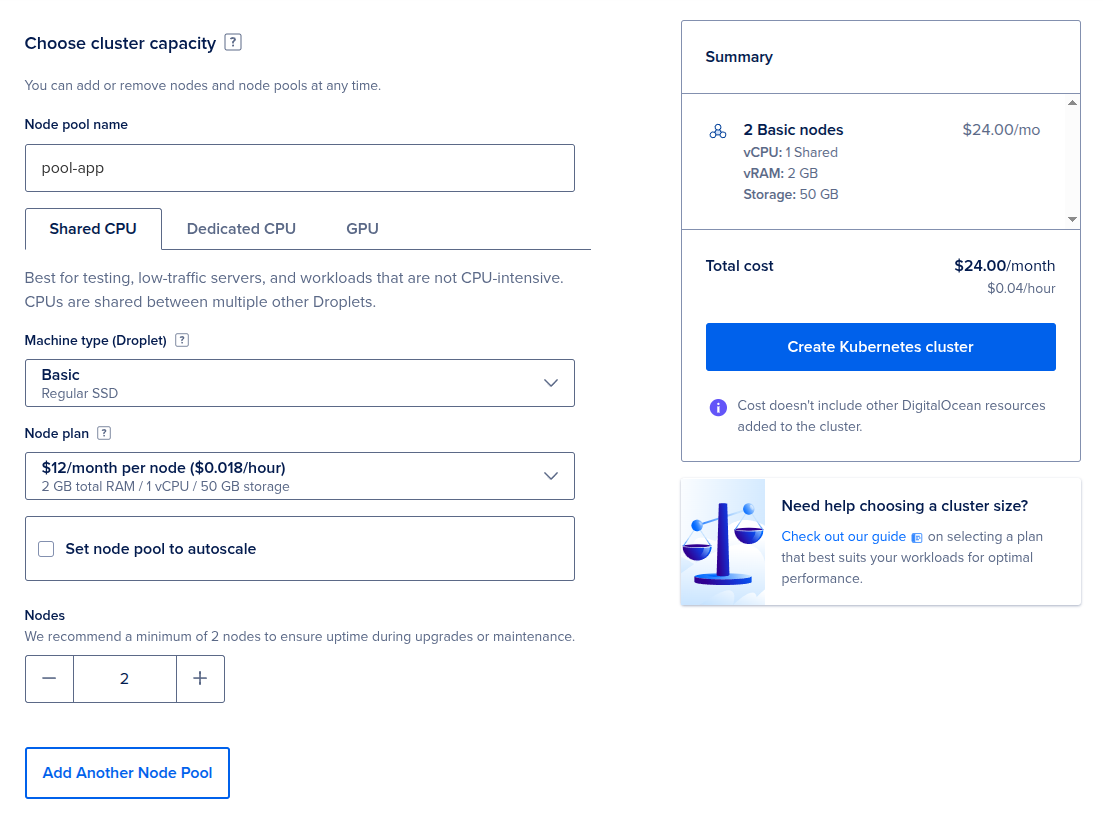

2. Set Node pool name

   Set Node pool name (e.g. pool-app) and configure Nodes. Digital Ocean recommends creating at least 2 nodes for the production environment. These settings will have an impact on the price of the cluster.

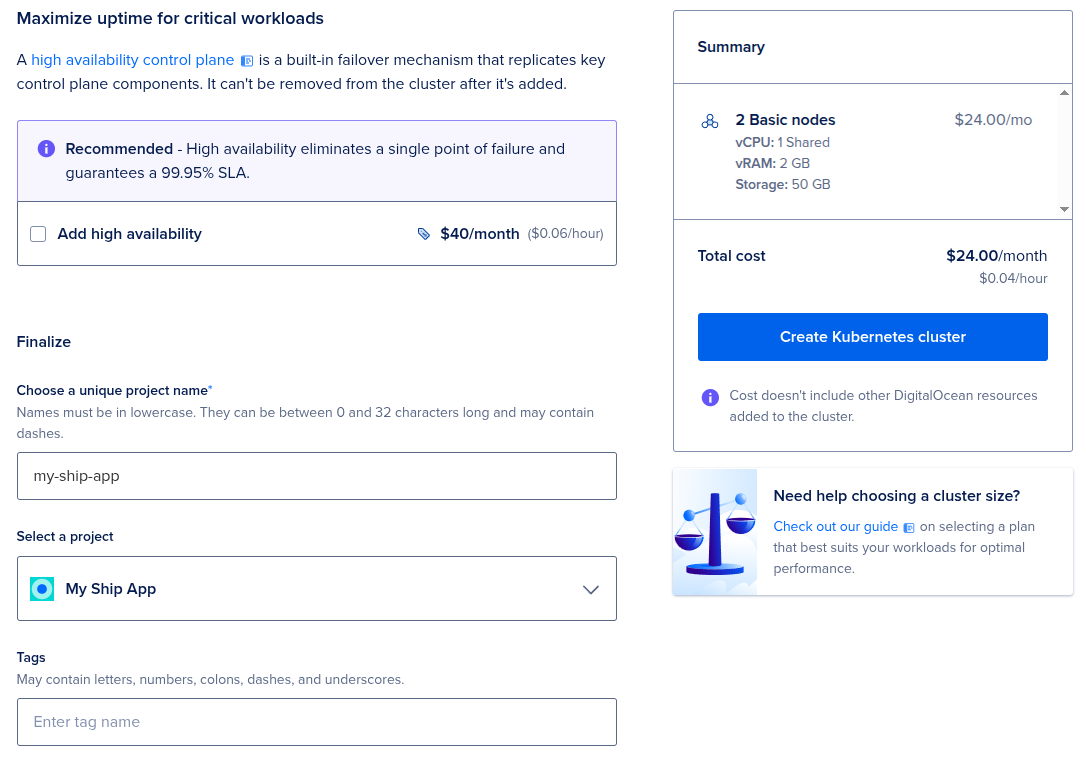

3. Set cluster name

   Set cluster name (e.g. my-ship-app). A common practice is to use the project name for it.


4. Review and Create

   Click on Create Kubernetes Cluster button to create a cluster and wait for cluster to be ready.

5. Integrate with created Container Registry

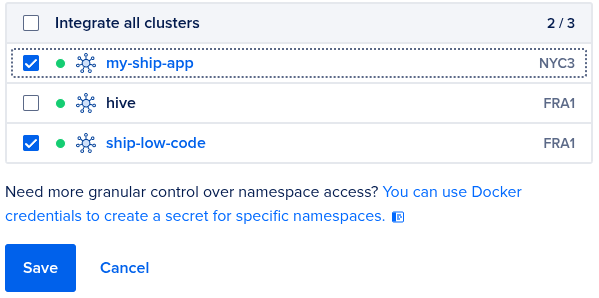

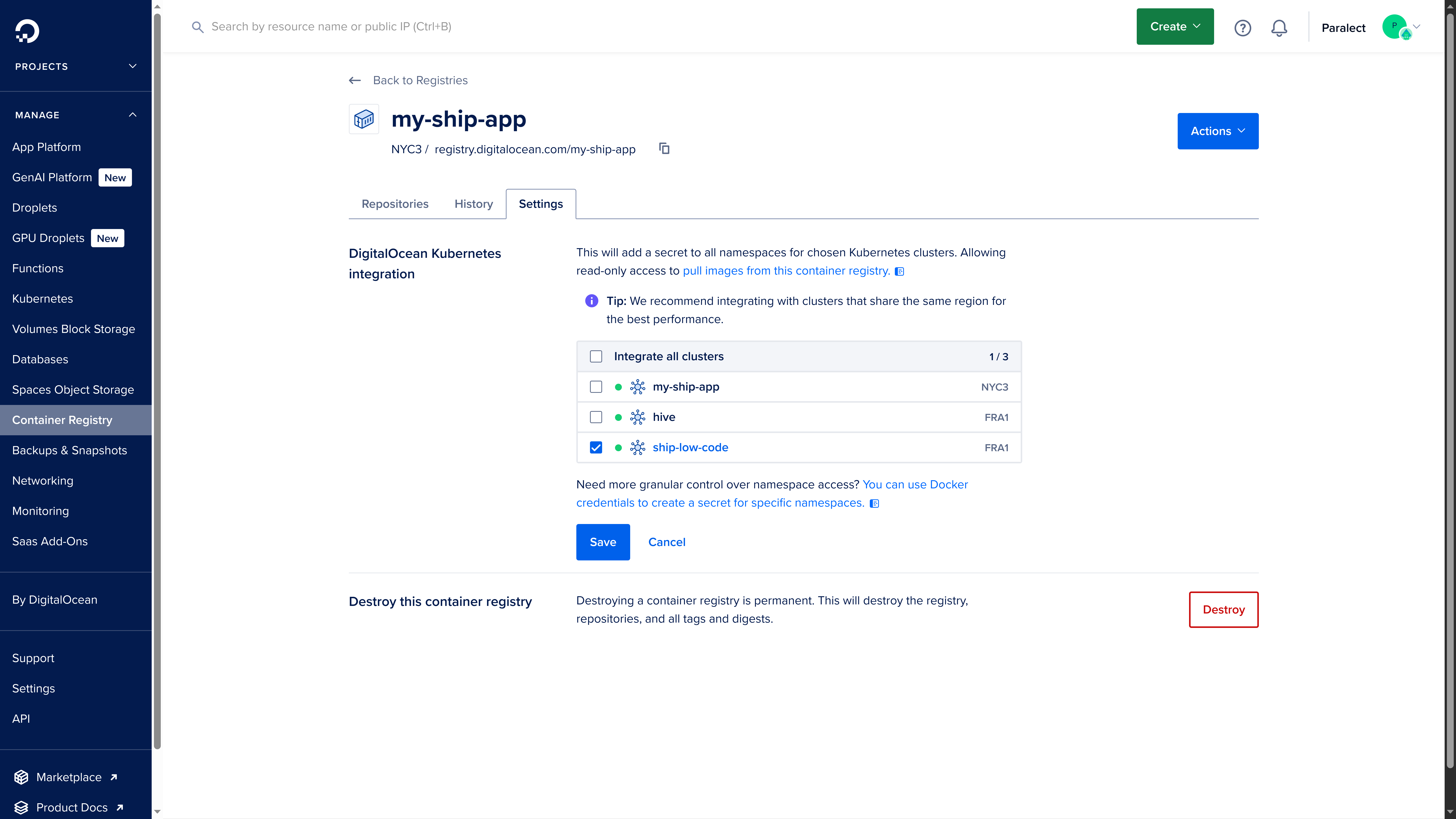

   After cluster is created, go to the Container Registry’s settings and find DigitalOcean Kubernetes integration section.



   You need to select your newly created my-ship-app cluster.



Personal access token

To upload docker images in Container Registry and pull them after from cluster we need Digital Ocean Personal Access Token. When you created cluster - one with Read Only scope was automatically created.

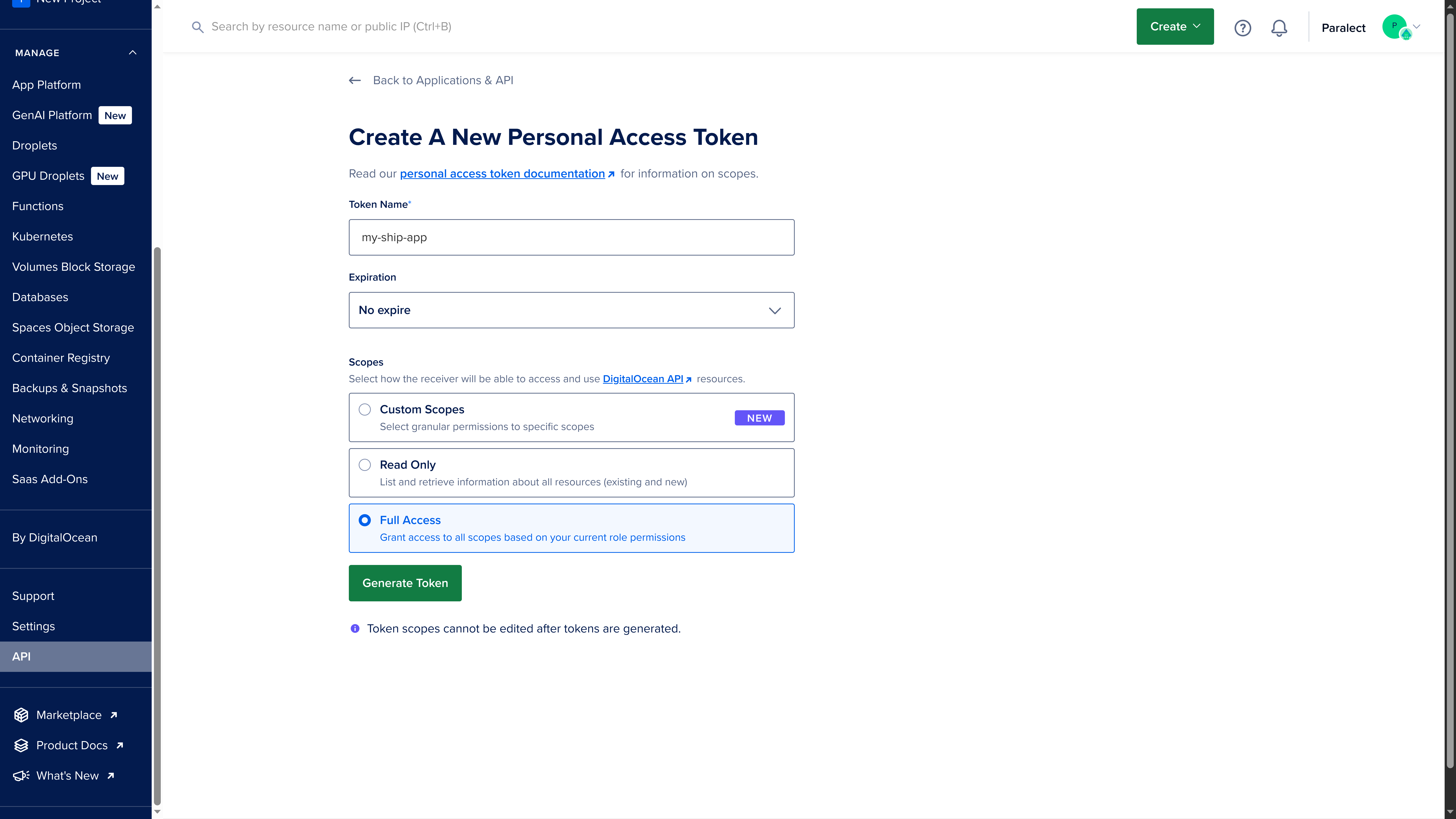

But we need to generate a new one with:

• Name (e.g. my-ship-app-admin-deploy)
• Full Access scope
• No expiration

You cannot change scope of already generated token.

We will need this token soon, so don’t close this page yet.

Be very careful with Personal Access Token, if someone steals it he will get access to all resources from your Digital Ocean account.

Accessing cluster from a local machine

1. Download cluster's kubeconfig

   Download cluster’s kubeconfig, this file includes information for accessing cluster through kubectl.



   Expected structure of downloaded kubeconfig

   my-ship-app-kubeconfig.yaml

   apiVersion: v1
   clusters:
   - cluster:
       certificate-authority-data: ...
       server: https://...
     name: do-nyc3-my-ship-app
   contexts:
   - context:
       cluster: do-nyc3-my-ship-app
       user: do-nyc3-my-ship-app-admin
     name: do-nyc3-my-ship-app
   current-context: do-nyc3-my-ship-app
   kind: Config
   preferences: {}
   users:
   - name: do-nyc3-my-ship-app-admin
     user:
       token: dop_v1_...


   And replace initial Read only token with new Full access token from Personal access token section.

   my-ship-app-kubeconfig.yaml

   apiVersion: v1
   clusters:
   - cluster:
       certificate-authority-data: ...
       server: https://...
     name: do-nyc3-my-ship-app
   contexts:
   - context:
       cluster: do-nyc3-my-ship-app
       user: do-nyc3-my-ship-app-admin
     name: do-nyc3-my-ship-app
   current-context: do-nyc3-my-ship-app
   kind: Config
   preferences: {}
   users:
   - name: do-nyc3-my-ship-app-admin
     user:
       # replace this token for full access token
       token: dop_v1_...


2. Add cluster, context and user to kubeconfig

   Kubeconfig files contain information about several clusters, you have your own on the local machine, it should have been created after kubectl installation.

   You need to add information about the new cluster to your kubeconfig. Find .kube/config file on your machine, and add cluster, context and user values from my-ship-app-kubeconfig.yaml.

   ~/.kube/config

   apiVersion: v1
   clusters:
   - cluster:
       certificate-authority-data: ...
       server: https://...
     name: some-cluster
   # your new cluster from my-ship-app-kubeconfig.yaml goes here
   - cluster:
       certificate-authority-data: ...
       server: https://...
     name: do-nyc3-my-ship-app
   contexts:
   - context:
       cluster: some-cluster
       user: some-user
     name: some-cluster
   # your new context from my-ship-app-kubeconfig.yaml goes here
   - context:
       cluster: do-nyc3-my-ship-app
       user: do-nyc3-my-ship-app-admin
     name: do-nyc3-my-ship-app
   current-context: some-cluster
   kind: Config
   preferences: {}
   users:
   - name: some-user
     user:
       token: dop_v1_...
   # your new user from my-ship-app-kubeconfig.yaml goes here
   - name: do-nyc3-my-ship-app-admin
     user:
       token: dop_v1_...


3. Switch to cluster context

   Execute kubectx in your terminal and select your cluster from the list.

   kubectx


   You will see the list of available clusters.

   some-cluster
   do-nyc3-my-ship-app


   Select your cluster from the list:

   kubectx do-nyc3-my-ship-app

4. Verify cluster access

   Check the installed pods by running:

   kubectl get pods -A


   You should see a list of system pods in your cluster:

   NAMESPACE     NAME                            READY   STATUS    RESTARTS   AGE
   kube-system   cilium-tb8td                    1/1     Running   0          18m
   kube-system   cilium-x5w8n                    1/1     Running   0          19m
   kube-system   coredns-5679ffb5c8-b7dzj        1/1     Running   0          17m
   kube-system   coredns-5679ffb5c8-d465r        1/1     Running   0          17m
   kube-system   cpc-bridge-proxy-ebpf-2gzfr     1/1     Running   0          17m
   kube-system   cpc-bridge-proxy-ebpf-jknzh     1/1     Running   0          17m
   kube-system   csi-do-node-jcqd2               2/2     Running   0          17m
   kube-system   csi-do-node-rpx6q               2/2     Running   0          17m
   kube-system   do-node-agent-ldhxq             1/1     Running   0          17m
   kube-system   do-node-agent-pdksz             1/1     Running   0          17m
   kube-system   hubble-relay-66f54dcd57-l7xjb   1/1     Running   0          21m
   kube-system   hubble-ui-785bdbc45b-6xd57      2/2     Running   0          18m
   kube-system   konnectivity-agent-h79mt        1/1     Running   0          17m
   kube-system   konnectivity-agent-hvv67        1/1     Running   0          17m


Ingress NGINX Controller

ingress-nginx is an Ingress controller for Kubernetes using NGINX as a reverse proxy and load balancer.

Learn more about ingress-nginx functionality in the official documentation.

1. Navigate to dependencies directory

   Change to the deploy/dependencies directory in your terminal.

2. Configure Helm Values (Optional)

   This step is required only if you specified a custom node pool name in your Digital Ocean Kubernetes cluster.

   If you did, update the doks.digitalocean.com/node-pool value in values.yaml.gotmpl:

   deploy/dependencies/ingress-nginx/values.yaml.gotmpl

   controller:
     publishService:
       enabled: true
     nodeSelector:
       doks.digitalocean.com/node-pool: pool-app

   rbac:
     create: true

   defaultBackend:
     enabled: false


3. Install dependencies

   Install helm dependencies using helmfile:

   helmfile deps

4. Review and apply changes

   Preview the changes first:

   helmfile diff


   If the preview looks correct, apply the configuration:

   helmfile apply


DNS and SSL

1. Get Load Balancer Address

   After deploying ingress-nginx, retrieve the Load Balancer’s external ip:

   kubectl get svc ingress-nginx-controller -n ingress-nginx


   Copy the value from the EXTERNAL-IP column.

   NAME                       TYPE           CLUSTER-IP       EXTERNAL-IP      PORT(S)                      AGE
   ingress-nginx-controller   LoadBalancer   10.245.201.160   138.68.124.241   80:30186/TCP,443:32656/TCP   28m


   It take some time while ingress-nginx will configure everything and provide EXTERNAL-IP.

2. Domain Naming Convention

   You can follow this recommended naming pattern for different environments:

   Environment	API Domain	Web Domain
   Production	api.ship.com	app.ship.com
   Staging	api.staging.ship.com	app.staging.ship.com

3. Configure DNS in Cloudflare

   1. First, ensure you have a domain in Cloudflare. You can either:

   • Register a new domain
   • Transfer an existing domain

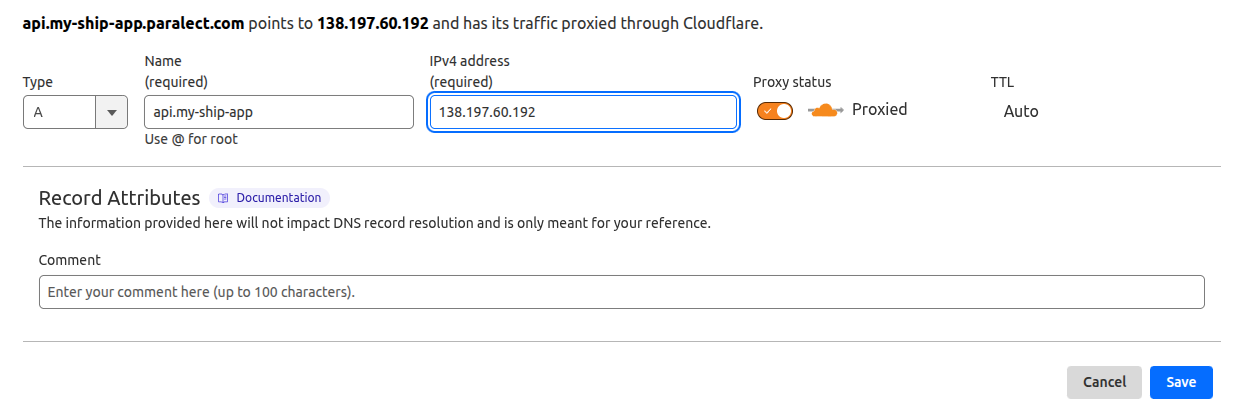

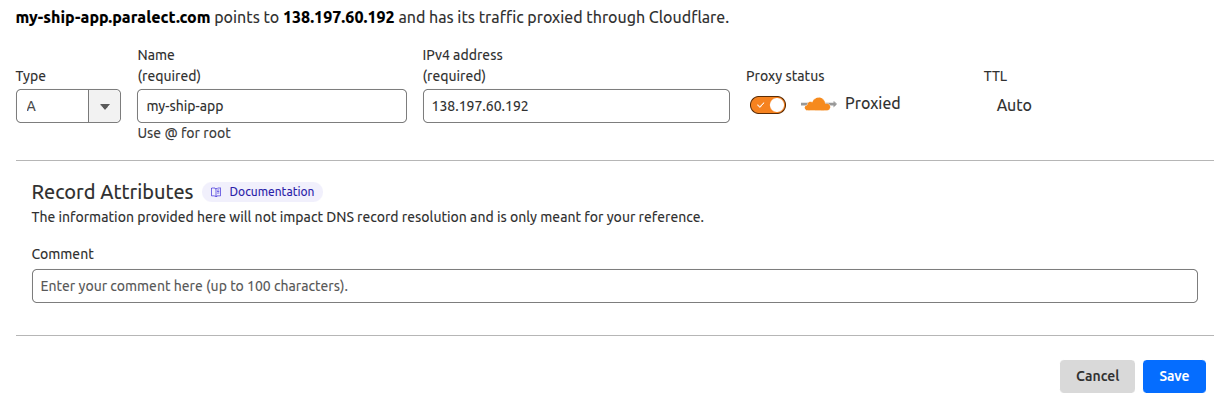

   2. In the Cloudflare DNS tab, create 2 A records:

   • One for Web interface
   • One for API endpoint

   Both should point to your Load Balancer’s external hostname.

   Enable the Proxied option to:

   • Route traffic through Cloudflare
   • Generate SSL certificates automatically








   Cloudflare’s free Universal SSL certificates only cover the apex domain and one subdomain level. For multiple subdomain levels, you’ll need an Advanced Certificate.

4. Update Configuration Files

   Update your domain settings in the appropriate environment configuration files:

   For API service:

   deploy/app/api/production.yaml

   service: api
   port: 3001
   domain: api.my-ship-app.paralect.com


   For Web service:

   deploy/app/web/production.yaml

   service: web
   port: 3002
   domain: my-ship-app.paralect.com


MongoDB Atlas

MongoDB Atlas is a fully managed cloud database service that provides automated backups, scaling, and security features. It offers 99.995% availability with global deployment options and seamless integration with AWS infrastructure.

Cluster Creation

1. Access MongoDB Atlas

   Sign in to your MongoDB Atlas account and create a new project if needed.

2. Deploy New Cluster

   Click Create to start cluster deployment.

   Cluster Tier Selection:

   • Staging: M0 (Free tier) - Suitable for development and testing
   • Production: M10 or higher - Includes automated backups and advanced features


3. Configure Cluster Name

   Enter a descriptive cluster name (e.g., ship-production-cluster, ship-staging-cluster)

Security Configuration

1. Create Database User

   Navigate to Database Access → Add New Database User

   • Authentication Method: Password
   • Username: Use environment-specific names (e.g., api-production, api-staging)
   • Password: Generate a strong password
   • Database User Privileges: Read and write to any database



   Password Requirements: Ensure the password starts with a letter and contains only alphanumeric characters and common symbols. Special characters at the beginning can cause URI parsing issues.

2. Configure Network Access

   Navigate to Network Access → Add IP Address

   • Click Allow access from anywhere to allow connections from any IP with valid credentials
   • For production, consider restricting to specific IP ranges for enhanced security



Get Connection String

1. Access Connection Details

   Go to your cluster dashboard and click the Connect button.


2. Copy Connection String

   1. Select Drivers in the “Connect your application” section
   2. Choose Node.js driver and latest version
   3. Copy the connection string and replace <db_password> with your actual password



   Example Connection String:

   mongodb+srv://api-production:[e-mail]/?retryWrites=true&w=majority

3. Save Connection Details

   Store the connection string securely - you’ll need it for environment configuration later

Before deploying to production, configure automated backups in the Atlas console to ensure data recovery capabilities.

Environment variables

Kubernetes applications require proper environment variable configuration for both API and Web components. This section covers how to set up and manage environment variables securely using Kubernetes secrets and configuration files.

API Environment Variables

For the API deployment, you need to set up environment variables using Kubernetes secrets to securely manage sensitive configuration data.

Secrets in Kubernetes are used to store sensitive information, such as passwords, API tokens, and keys. They are encoded in Base64 format to provide a level of security. These can be mounted into containers as data volumes or used as environment variables.

Before deploying the app, make sure all necessary variables from the API config are exist. Here are the minimal set of required variables:

Name	Description	Example value
APP_ENV	Application environment	production
MONGO_URI	Database connection string	mongodb://<username>:<password>@ship.mongodb.net
MONGO_DB_NAME	Database name	api-production
API_URL	API domain URL	https://api.my-ship-app.paralect.com
WEB_URL	Web app domain URL	https://my-ship-app.paralect.com

Environment Variable Details

APP_ENV

Specifies the application environment (development, staging, production). This controls logging levels, debugging features, error reporting, and other environment-specific behaviors. The API uses this to determine which configuration settings to load.

MONGO_URI

MongoDB connection string including authentication credentials and cluster information. This is the primary database connection for the API. Format: mongodb+srv://username:[e-mail]. Each environment should use a separate database cluster or at minimum separate credentials.

MONGO_DB_NAME

Name of the MongoDB database to use for this environment. Each environment (development, staging, production) should have its own database to prevent data conflicts and ensure proper isolation.

API_URL

The fully qualified domain name where the API will be accessible. This must be a valid HTTPS URL and should match your Kubernetes ingress configuration. Used for CORS settings and internal service communication.

WEB_URL

The fully qualified domain name where the web application will be accessible. Used for CORS configuration, redirect URLs, email templates, and social sharing metadata. Must be a valid HTTPS URL.

Setting up Kubernetes Secrets

1. Create namespaces and secret objects

   Create Kubernetes namespaces and secret objects for staging and production environments:

   kubectl create namespace staging
   kubectl create secret generic api-staging-secret -n staging
   kubectl create namespace production
   kubectl create secret generic api-production-secret -n production

2. Initialize secret storage

   First, create an APP_ENV variable to initialize secret storage for k8sec:

   production

   k8sec set api-production-secret APP_ENV=production -n production

3. Verify secret creation

   Run the following command to check the created secret:

   production

   k8sec list api-production-secret -n production

4. Prepare environment file

   Create a .env.production file with all required variables:

   .env.production

   APP_ENV=production
   MONGO_URI=mongodb://username:[e-mail]
   MONGO_DB_NAME=api-production
   API_URL=https://api.my-ship-app.paralect.com
   WEB_URL=https://my-ship-app.paralect.com


   Replace all example values with your actual configuration. Never use production secrets in documentation or version control.

5. Import secrets to Kubernetes

   Import secrets from the .env file to Kubernetes secret using k8sec:

   production

   k8sec load -f .env.production api-production-secret -n production


After updating environment variables, you must initiate a new deployment for changes to take effect. Kubernetes pods cache variable values during startup, requiring a pod restart or rolling update to apply changes.

Web Environment Variables

The web application uses Next.js environment variables that are embedded at build time and made available in the browser. Unlike API secrets, these variables are stored directly in the GitHub repository.

Why Web Environment Variables Are Safe in Git: Web environment variables (prefixed with NEXT_PUBLIC_) contain only public configuration like URLs and API endpoints. They don’t include sensitive data like passwords or API keys, making them safe to store in version control. These values are already exposed to users in the browser, so repository storage doesn’t create additional security risks.

Security Notice: Never store sensitive information (passwords, API keys, secrets) in web environment files as they will be accessible on the client side. Only use public configuration values that are safe to expose to end users.

Configuration Files

Web environment variables are stored in separate files for each deployment environment:

apps/web/.env.production

NEXT_PUBLIC_API_URL=https://api.my-ship-app.paralect.com
NEXT_PUBLIC_WS_URL=https://api.my-ship-app.paralect.com
NEXT_PUBLIC_WEB_URL=https://my-ship-app.paralect.com

Environment Variables Reference

Variable	Description	Example
NEXT_PUBLIC_API_URL	Base URL for API requests	https://api.my-ship-app.paralect.com
NEXT_PUBLIC_WS_URL	WebSocket server URL for real-time	https://api.my-ship-app.paralect.com
NEXT_PUBLIC_WEB_URL	App’s own URL for redirects/metadata	https://my-ship-app.paralect.com

Best Practice: Keep web environment files in your repository and ensure all values are non-sensitive. If you need to reference sensitive data from the frontend, create a secure API endpoint that returns the necessary information after proper authentication.

Setting up GitHub Actions CI/CD

To automate deployment through Github Actions you need to configure Github Secrets inside workflow files.

Configuring GitHub Actions secrets and variables

Before starting, make sure you have created a GitHub repository for your project.

GitHub Secrets and variables allow you to manage reusable configuration data.

Secrets are encrypted and are used for sensitive data. Learn more about encrypted secrets.

Variables are shown as plain text and are used for non-sensitive data. Learn more about variables.

The deployment will be triggered on each commit:

• Commits to main branch → deploy to staging environment
• Commits to production branch → deploy to production environment

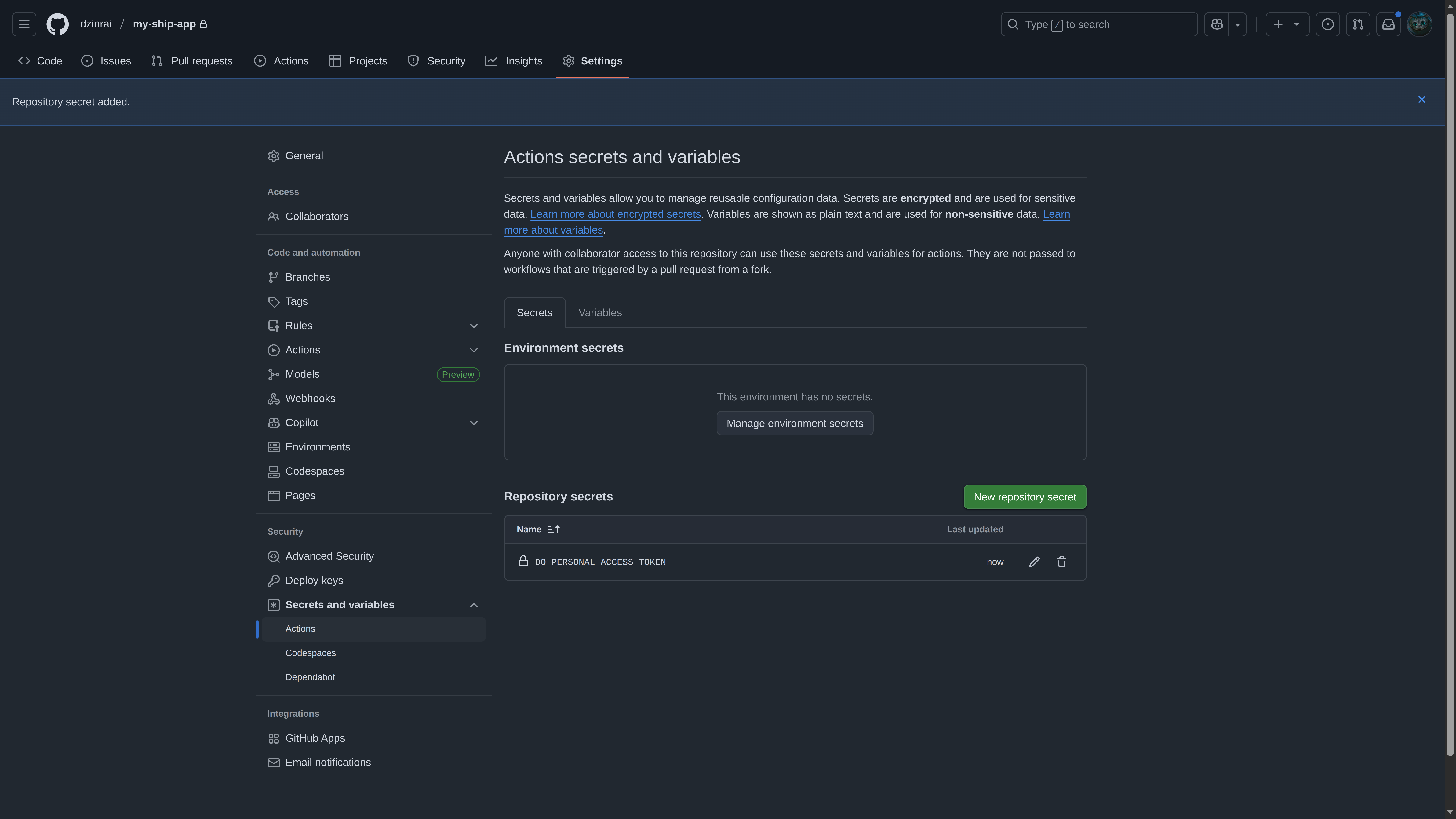

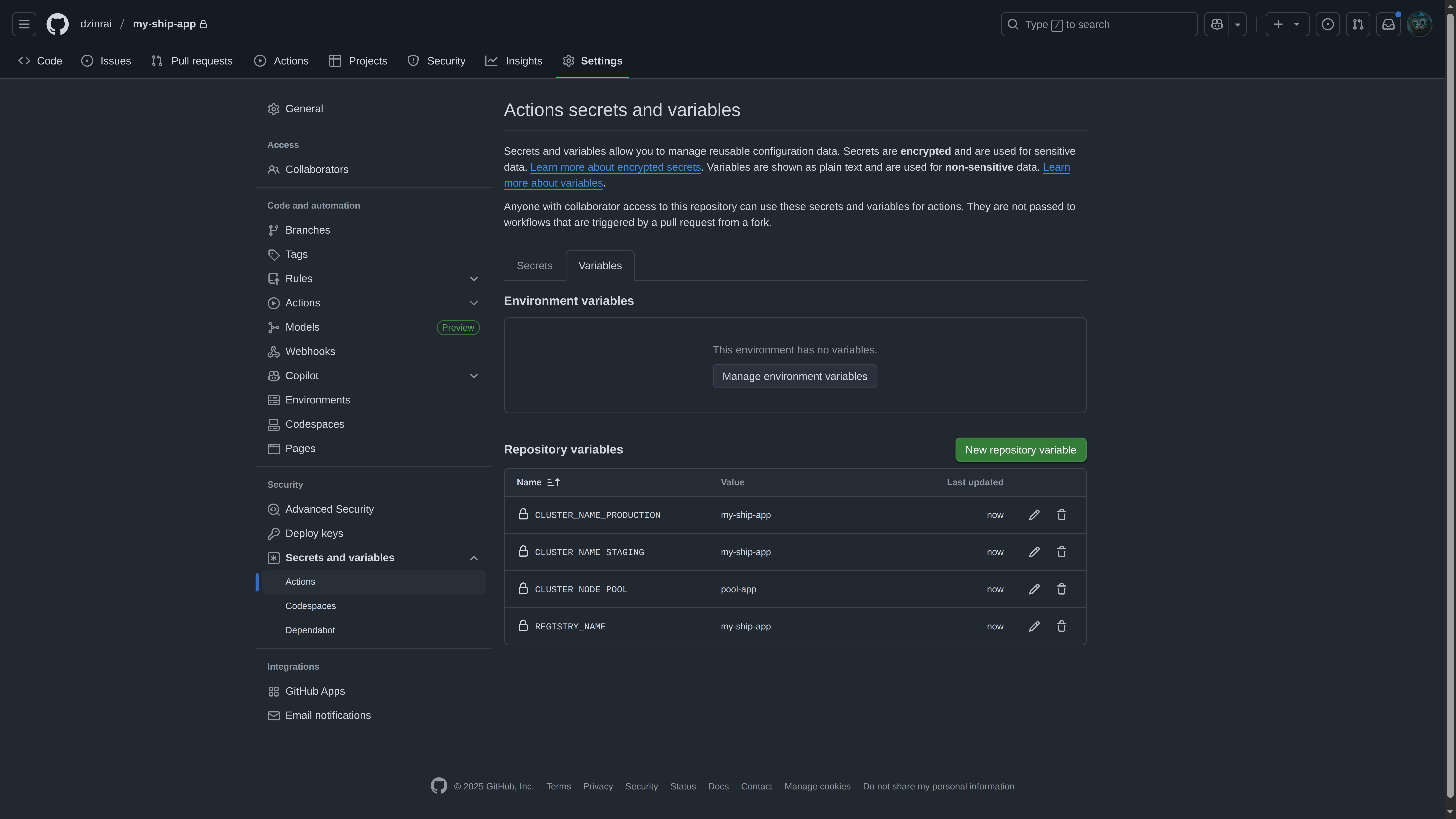

Configure the following secrets and variables in your GitHub repository:

Name	Type	Description
DO_PERSONAL_ACCESS_TOKEN	secret	The secret access user created for CI/CD. This allows GitHub Actions to authenticate with DO services
CLUSTER_NAME_STAGING	variable	Name of the staging cluster. (our case: my-ship-app)
CLUSTER_NAME_PRODUCTION	variable	Name of the production cluster. (our case: my-ship-app, same as staging cluster since we have only one cluster)
CLUSTER_NODE_POOL	variable	Name of the node pool. (our case: pool-app)
REGISTRY_NAME	variable	Name of the Digital Ocean Container Registry. (our case: my-ship-app)

Never commit sensitive credentials directly to your repository.
Always use GitHub Secrets for sensitive information like DO keys.

Variables (unlike secrets) are visible in logs and can be used for non-sensitive configuration values that may need to be referenced or modified.

We set up DO_PERSONAL_ACCESS_TOKEN to be universal for both production and staging environments with Full access scope.

Your KUBE_CONFIG_PRODUCTION and KUBE_CONFIG_STAGING will be the same if you have only one cluster for both environments.

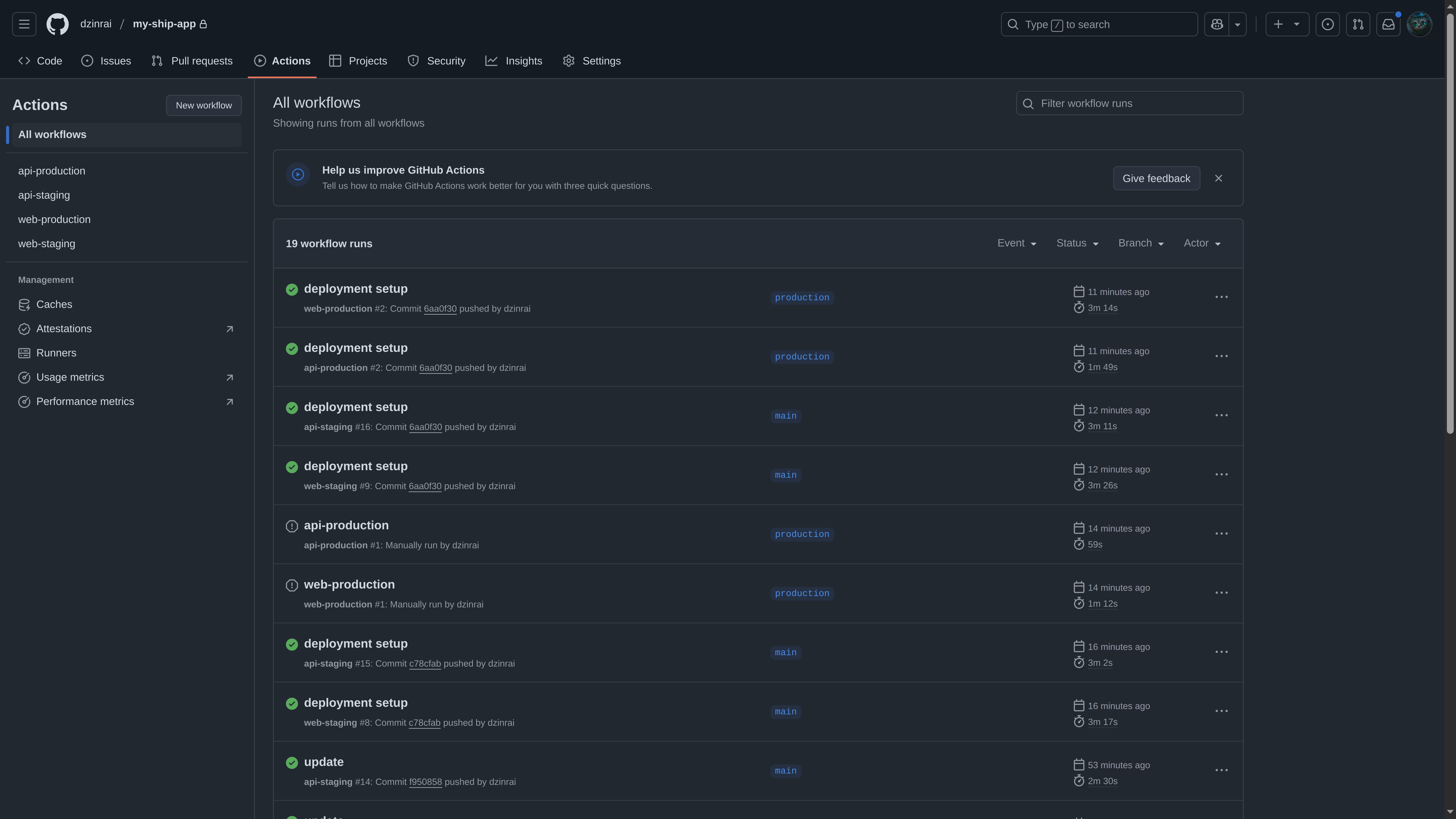

Now commit all changes to GitHub that will trigger deployment, or you can run a workflow manually

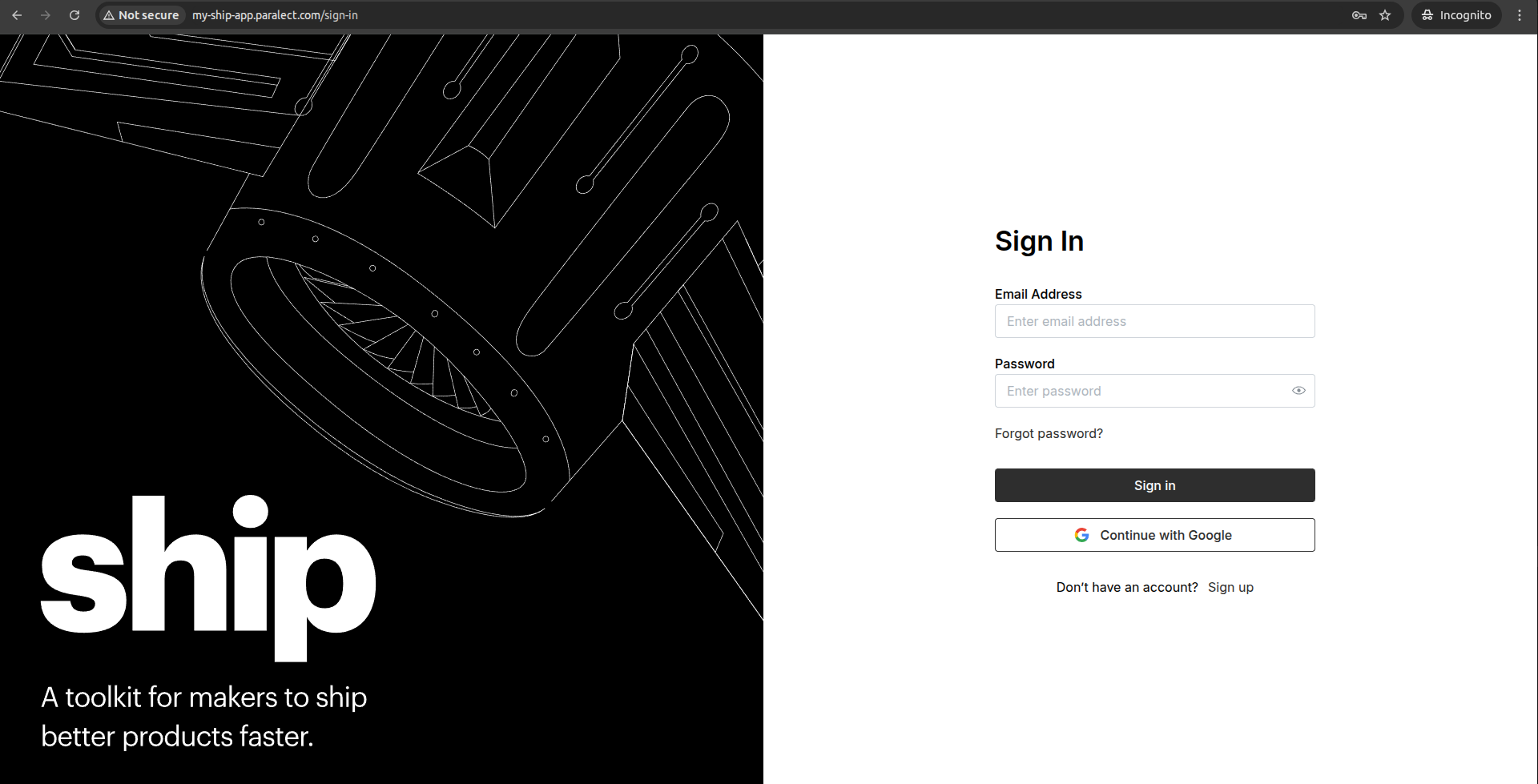

Done! Application deployed and can be accessed by the provided domain.

kubectl get pods -A

NAMESPACE       NAME                                        READY   STATUS      RESTARTS   AGE
ingress-nginx   ingress-nginx-controller-6bdff8c8fd-kwxcn   1/1     Running     0          6h50m
kube-system     cilium-tb8td                                1/1     Running     0          8h
kube-system     cilium-x5w8n                                1/1     Running     0          8h
kube-system     coredns-5679ffb5c8-b7dzj                    1/1     Running     0          8h
kube-system     coredns-5679ffb5c8-d465r                    1/1     Running     0          8h
kube-system     cpc-bridge-proxy-ebpf-2gzfr                 1/1     Running     0          8h
kube-system     cpc-bridge-proxy-ebpf-jknzh                 1/1     Running     0          8h
kube-system     csi-do-node-jcqd2                           2/2     Running     0          8h
kube-system     csi-do-node-rpx6q                           2/2     Running     0          8h
kube-system     do-node-agent-ldhxq                         1/1     Running     0          8h
kube-system     do-node-agent-pdksz                         1/1     Running     0          8h
kube-system     hubble-relay-66f54dcd57-l7xjb               1/1     Running     0          8h
kube-system     hubble-ui-785bdbc45b-6xd57                  2/2     Running     0          8h
kube-system     konnectivity-agent-h79mt                    1/1     Running     0          8h
kube-system     konnectivity-agent-hvv67                    1/1     Running     0          8h
production      api-57d7787d98-cj75s                        1/1     Running     0          2m15s
production      migrator-286bq                              0/1     Completed   0          2m54s
production      scheduler-6c497dfbcc-n6b5l                  1/1     Running     0          2m6s
production      web-54c6674974-lv94b                        1/1     Running     0          71m
redis           redis-master-0                              1/1     Running     0          6h49m
staging         api-689b75c786-97c4l                        1/1     Running     0          71m
staging         scheduler-57b984f6c-zcc44                   1/1     Running     0          71m
staging         web-55bdd955b-chswp                         1/1     Running     0          70m

If something went wrong you can check the workflows logs on GitHub and use kubectl logs, kubectl describe commands.

Setting up Upstash Redis database (recommended)

Upstash Redis Integration

Upstash Redis is a highly available, infinitely scalable Redis-compatible database that provides enterprise-grade features without the operational complexity.

How Ship Uses Redis

Ship leverages Redis for several critical functionalities:

Use Case	Description	Implementation
Real-time Communication	Pub/Sub mechanism for WebSocket functionality	Socket.io Redis Adapter
Rate Limiting	API request throttling and abuse prevention	Redis counters with TTL
Caching	Application data caching for improved performance	Key-value storage with expiration

Redis as a Message Broker: When scaling to multiple server instances, Redis acts as a message broker between Socket.io servers, ensuring real-time messages reach all connected clients regardless of which server they’re connected to.

Setting Up Upstash Redis

Create Your Database

1. Access Upstash Console

   Log in to your Upstash account and navigate to the Redis section.

2. Create New Database

   Click Create Database in the upper right corner to open the configuration dialog.


3. Configure Database Settings

   Database Name: Choose a descriptive name for your database (e.g., my-ship-app-production)

   Primary Region: Select the region closest to your main application deployment for optimal write performance.

   Read Regions: Choose additional regions where you expect high read traffic for better global performance.

4. Select Plan & Deploy

   Choose your pricing plan based on expected usage and click Create to deploy your database.

Once your database is created, you’ll need the connection string for your application:

1. Navigate to Connection Info

   Go to your database dashboard and find the Connect to your database section.


2. Copy Connection String

   1. Select the Node tab for the appropriate connection string format
   2. Click Reveal to show the hidden password
   3. Copy the complete Redis URI (format: rediss://username:password@host:port)
3. Add to Environment Variables through k8sec

   Using k8sec, add the Redis connection string to your environment configuration:

   production

   k8sec set api-production-secret -n production REDIS_URI=$REDIS_URI


   After updating environment variables, restart your API pod using:

   kubectl delete pod <pod-name> -n <namespace>


   This will trigger Kubernetes to create a new pod with the updated environment variables.

Verify Connection with Redis Insight

Redis Insight is a powerful GUI tool for managing and debugging Redis databases.

1. Install Redis Insight

   Download and install Redis Insight on your local machine.

2. Add Database Connection

   1. Open Redis Insight
   2. Click Add Database
   3. Paste your Upstash Redis connection string in the Connection URL field
   4. Click Add Database


3. Explore Your Database

   Once connected, you can use Upstash Redis Console to:

   • Browse keys and data structures
   • Execute Redis commands directly
   • Monitor real-time performance metrics
   • Debug application data storage



   Real-time Monitoring: Upstash Redis updates database metrics automatically every 10 seconds, giving you near real-time visibility into your Redis performance and usage.
